Nitro-PROGRAM Key Features

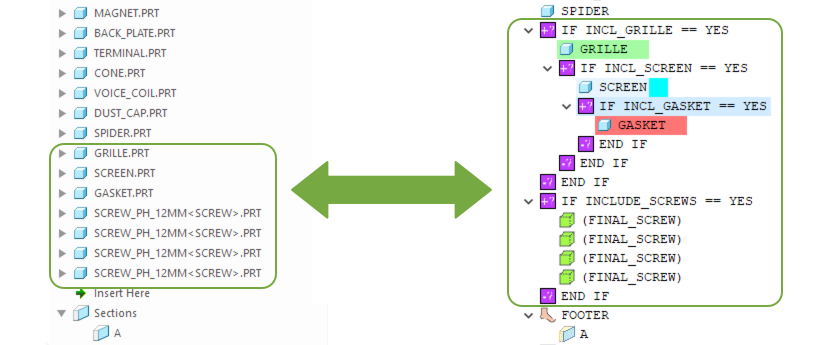

Visual Pro/PROGRAM Editing
Edit Pro/PROGRAM files using an intuitive graphical interface. See your program logic visually instead of working with raw text files.

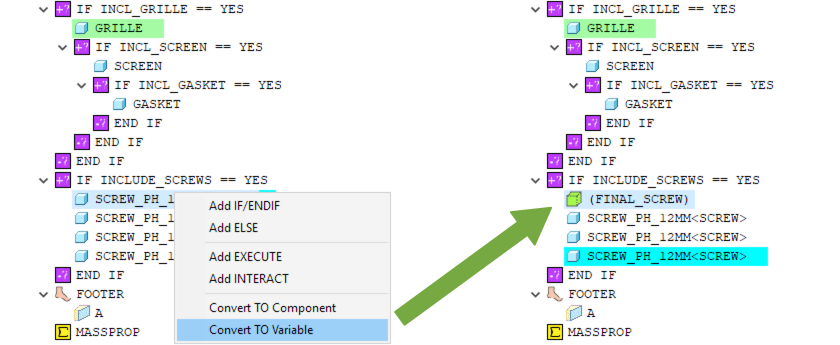

Part & Assembly Support
Full support for both Creo Parametric parts and assemblies. Manage Pro/PROGRAM logic across your entire product structure.
No Manual Coding
Eliminate error-prone manual Pro/PROGRAM editing. Build and modify program logic through point-and-click interactions.

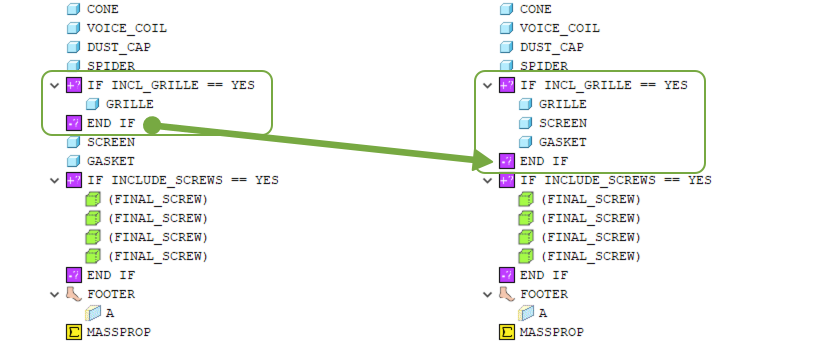

Drag & Drop Interface
Rearrange program statements, conditions, and logic blocks with simple drag and drop. Restructure programs quickly and accurately.

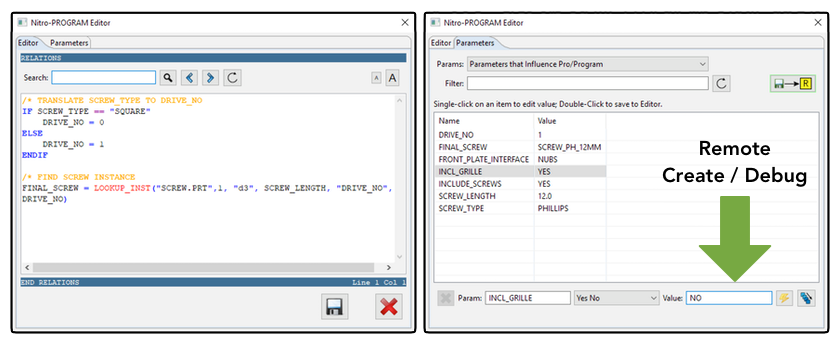

Error Prevention
Built-in validation catches syntax errors and logic issues before they reach Creo. Reduce debugging time and avoid costly mistakes.
Quick Learning Curve
Intuitive interface means engineers can be productive immediately. No programming experience required to create powerful Pro/PROGRAM logic.
What Is Pro/PROGRAM in Creo Parametric?
Pro/PROGRAM is the scripting layer built into PTC Creo Parametric. Every part and assembly carries one, and it controls how that model rebuilds: which features are suppressed or resumed, which components get assembled, what dimensions are driven, and which values the user is prompted for. It is the mechanism behind most configurable, made-to-order, and family-of-parts designs in Creo.

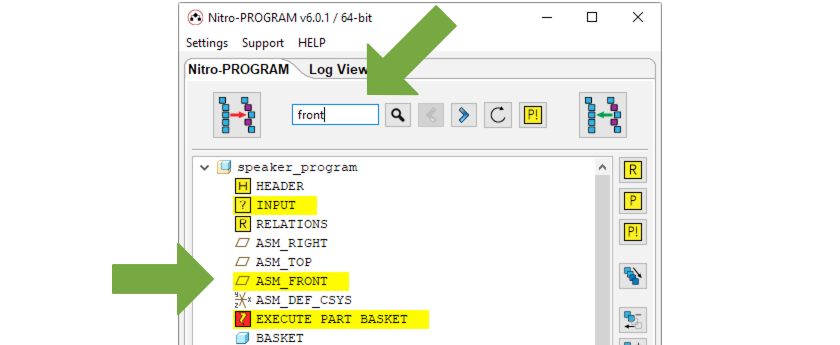

The catch is how you edit it. Creo opens the program as raw text in a system editor. There is no syntax checking, no search across statements, and no structural view of the IF-ENDIF nesting, so a misplaced ENDIF or a mistyped parameter name surfaces only when the model fails to regenerate. On a mature assembly the listing runs to hundreds of lines, and small edits get risky.
How Nitro-PROGRAM Changes That Workflow

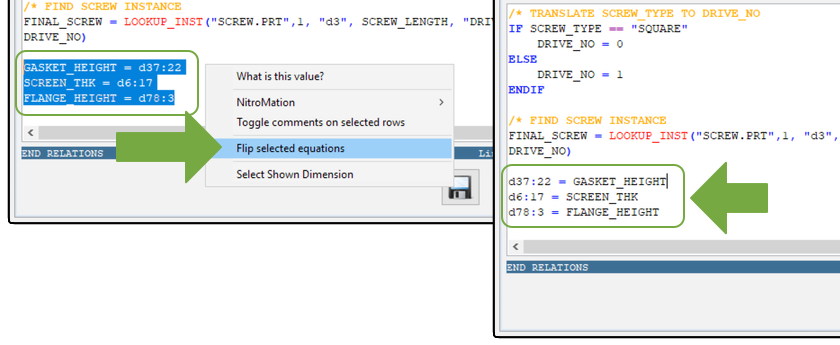

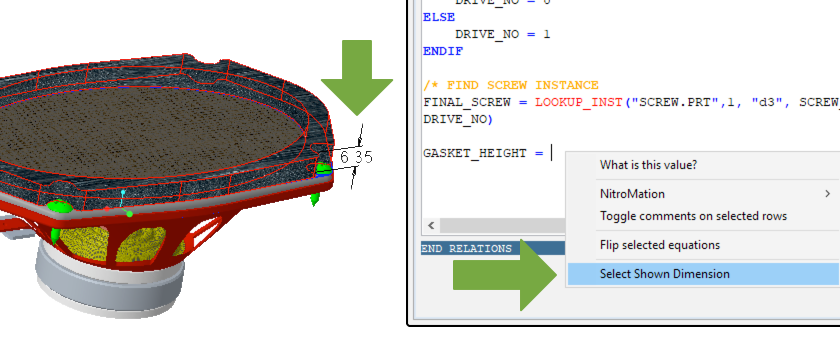

Nitro-PROGRAM replaces the text editor with a graphical one. Program structure is shown as a tree you can navigate and rearrange by dragging, INPUTS and RELATIONS get dedicated editors, dimensions and features are picked from lists rather than typed from memory, and validation runs before anything is written back to Creo. Engineers who avoid Pro/PROGRAM because editing it by hand is unforgiving can work with it directly, and the logic already embedded in legacy models becomes far easier to inherit, audit, and extend.
Nitro-PROGRAM covers design logic inside a single model. For driving models and drawings from spreadsheets see Nitro-CELL, and for assembly Bill of Materials export and parameter editing in Excel see Nitro-BOM. Setup guides and walkthrough videos for all three are in the documentation.
